FREEZE DRYER Lab Scale
Description
FREEZE DRYER
Specification
ILSHIN BIOBASE has developed Table Top Freeze Dryer by combination of ultra low temperature freezing technology and vacuum drying technology since 1988. ILSHIN BIOBASE freeze dryers suit for the various requirements of customers by modular combination of each functionality and flexibility, so customer can accomplish prompt and easy freeze drying research and development..
| Model | FD 8508 | FD 8512 | FD 8518 | FD 12008 | |
|---|---|---|---|---|---|
| Totally Ice Capacity | 8 liters | 12 liters | 18 liters | 8 liters | |
| Condencer
Temperature |
-70 to -85℃ | -100 to -120℃ | |||
| Ext. Dimension
(WxDxH mm) |
800x705x860 | 800x750x885 | |||
| Refrigeration | 1¼HP | 2×1½HP | |||
| Electrical | 220V 60Hz, 230V 50Hz | ||||
| Certification | ISO9001 / ISO4001 /CE | ||||
| Option | Drying Chamber | Multi Drying Chamber / Drying Chamber / Clear Drying Chamber / Heated Drying Chamber / Manifold Drying Chamber | |||
| Product Shelf | PH1316 | ||||
| Vacuum Pump | ISL136 (196 LPM) / ISL201 (283 LPM) | ||||
TABLE TOP FREEZE DRYER
ILSHIN BIOBASE Table Top Freeze Dryer can sustain with narrow space because of compact design. Prompt result of freeze drying can obtained from friendly design optimized for customer’s research environment.
| Model | TFD 8501 | TFD 8503 | |
|---|---|---|---|
| Totally Ice Capacity | 2 liters | 3 liters | |
| Condencer
Temperature |
-70 to -85℃ | ||
| Ext. Dimension
(WxDxH mm) |
450x525x500 | 800x650x400 | |
| Refrigeration | ⅜HP | ||
| Electrical | 220V 60Hz, 230V 50Hz | ||
| Certification | ISO9001 / ISO4001 / CE | ||
| Option | Drying Chamber | Multi Drying Chamber / Drying Chamber / Clear Drying Chamber / Heated Drying Chamber / Manifold Drying Chamber | |
| Product Shelf | PH1212 | ||
| Vacuum Pump | ISL6 (100 LPM) / ISL136 (196 LPM) | ||
| Model | FDS 8508 | FDS 8512 | FDS 8518 | ||
|---|---|---|---|---|---|
| Totally Ice Capacity | 9 liters | 12 liters | 18 liters | ||
| Condencer
Temperature |
-70 to -85℃/Shell freezer: -40℃ | ||||
| Ext. Dimension
(WxDxH mm) |
850x750x860 | ||||
| Refrigeration | 1¼HP + ⅜HP | ||||
| Electrical | 220V 60Hz, 230V 50Hz | ||||
| Certification | ISO9001 / ISO4001 / CE | ||||
| Option | Drying Chamber | MDC(Mainifold 8 Port) or (H)DC1316(**01/03 use to (H)DC1212) | |||
| Product Shelf | PH1316 | ||||
| Vacuum Pump | ISL136 (196 LPM) / ISL201 (283 LPM) | ||||
FREEZE DRYER with Shell Freezer – FDS
Shell freezer provides fast refrigeration down to -40℃ by powerful cooling system. Specially designed rotary system disperses the sample with uniformity for efficient drying result and shortest process lead time.
| Model | FDS 8508 | FDS 8512 | FDS 8518 | ||
|---|---|---|---|---|---|
| Totally Ice Capacity | 9 liters | 12 liters | 18 liters | ||
| Condencer
Temperature |
-70 to -85℃/Shell freezer: -40℃ | ||||
| Ext. Dimension
(WxDxH mm) |
850x750x860 | ||||
| Refrigeration | 1¼HP + ⅜HP | ||||
| Electrical | 220V 60Hz, 230V 50Hz | ||||
| Certification | ISO9001 / ISO4001 / CE | ||||
| Option | Drying Chamber | MDC(Mainifold 8 Port) or (H)DC1316(**01/03 use to (H)DC1212) | |||
| Product Shelf | PH1316 | ||||
| Vacuum Pump | ISL136 (196 LPM) / ISL201 (283 LPM) | ||||
FREEZE DRYER with Micro Concentrator – MCFD

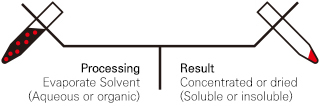

High speed centrifuge provides concentration under vacuum at limited space. Fast and efficient drying process is guaranteed by heating device as standard feature.
| Model | MCFD 8508 | MCFD 8512 | MCFD 8518 | ||
|---|---|---|---|---|---|
| Totally Ice Capacity | 8 liters | 12 liters | 18 liters | ||
| Condencer
Temperature |
-70 to -85℃ | ||||
| Ext. Dimension
(WxDxH mm) |
1005x750x885 | ||||
| Refrigeration | 1¼HP | ||||
| Electrical | 220V 60Hz, 230V 50Hz | ||||
| Certification | ISO9001 / ISO4001 /CE | ||||
| Option | Drying Chamber | MDC(Mainifold 8 Port) or (H)DC1316(**01/03 use to (H)DC1212) | |||
| Product Shelf | PH1316 | ||||
| Vacuum Pump | ISL136 (196LPM) / ISL201 (283LPM) | ||||

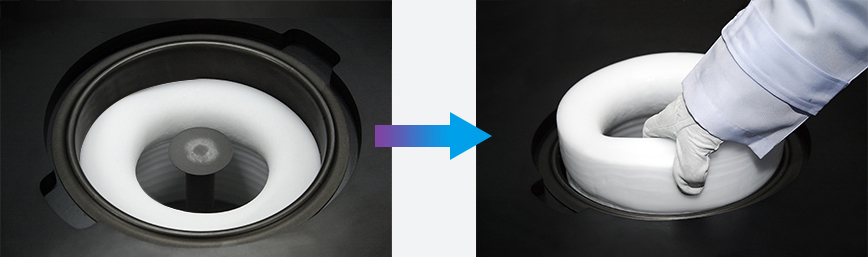

Defrosting system
Condensed ice must be removed within 30 minutes for continuous operation and for preventing contamination.
Condenser foams round type ice at below -80℃, easy to remove from condenser chamber
even under process of defrosting so next operation is promptly ready.
PTFE coating is standard feature for protection from contamination or
corrosion by acid or chemical substance.
More convenient

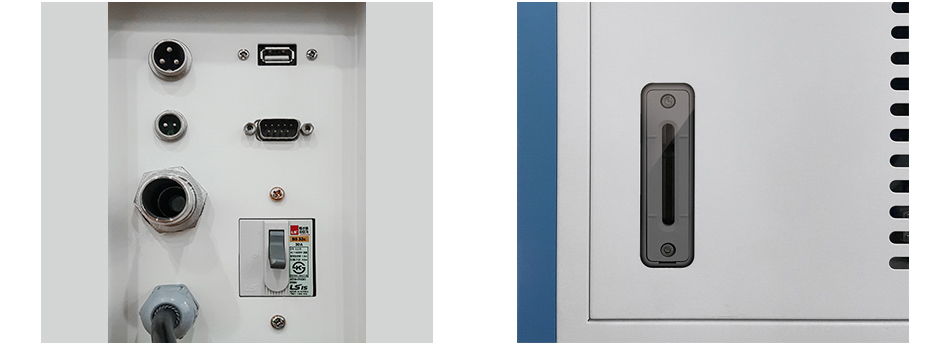

Remote Access & Observation Window
Connectable with PC by serial port. Available for monitoring temperature, vacuum level and operation status.
Cloudiness of vacuum oil can be observed through the window for timely maintenance
and for long term use.
Easy control

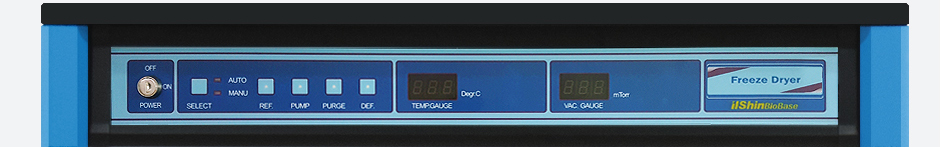

Micro processor LED control system
LED display provides condenser temperature and vacuum level. Switches for Power On-Off,
Selection of Automatic-Manual, Condenser cooling, Vacuum pump, Purge,
Pre-freezing and concentration.
All in one freeze-drying

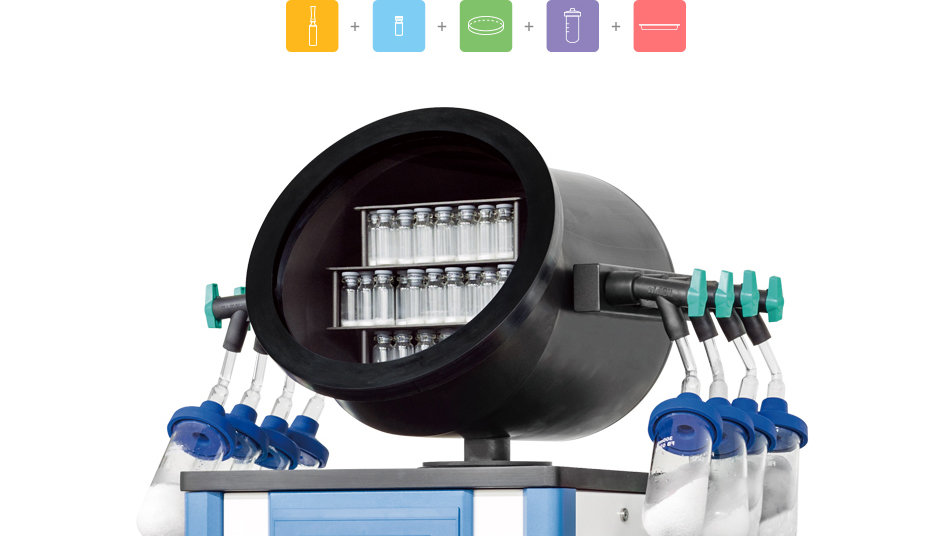

Multi drying chamber
Freeze Drying is executed under various environments and observation for the process is necessary.
New Multi Drying Chamber can be applied with various containers such as “Serum bottle, ampoule, complete flask,
Petri dish and/or bulk tray”. Therefore various applications are possible and loading/unloading is convenient.
It is easy to observe drying process and addition of freeze drying in the process is possible.
